LASER WELDING PBT(Panasonic)
Panasonic has developed laser welding grade (PBT) that will improve the long-term reliability of sensor product part which is required "waterproof "and "airtight".
① Laser transmittance 72% (Wavelength：1064nm, Thickness:1mm)

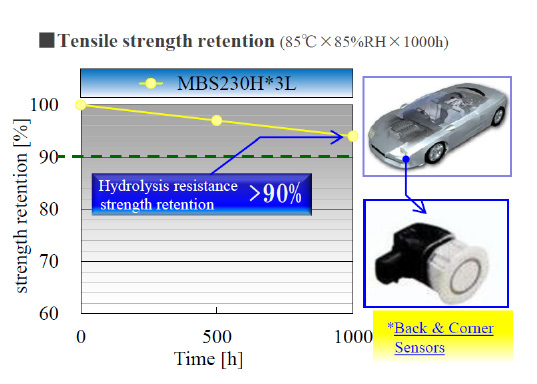

② Hydrolysis resistance strength retention >90% (85℃×85%RH×1,000h)
③ VIS light transmittance (*Less than 600nm area) <3% (MBS230H33L Brown)
④ Laser welding PBT Grade / Characteristic List
| Laser-transparent material | Laser-absorbing material | |||||
|---|---|---|---|---|---|---|
| Features |
[ MBS230H03L ] |
[ MBS230H33L ] |
[ MBS230V**L ] |
[ MBS230H9* ] |
[ MBS230V9* ] |
|
| Test item | Unit | |||||
| Color | Natural | Brown | Natural | Black | Black | |
| Flame resistance (*0.8mmt) |
HB | HB | V-0 | HB | V-0 | |
| Laser transmittance (*1064nm） |
% | 72 | 72 | 31 | ||
| hydrolysis resistance (*85℃×85％RH×1000h, Tensile strength retention） |
% | >90 | >90 | >90 | >90 | >90 |
| Heat distortion temperature(*1.82MPa) |
℃ | 200 | 200 | 200 | 200 | 200 |
